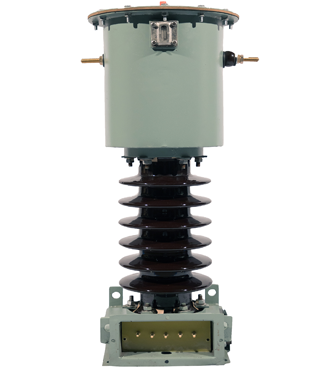

Current Transformers (CT) are used for current metering and protection in high voltage network systems. They transform the high current on the high voltage side into low current (1 or 5 A) adequate to be processed in measuring and protection instruments (secondary equipment, such as relays and recorders). A current transformer also isolates the measuring instruments from the high voltage of the monitored circuit. Current transformers are commonly used for metering and protection in the electrical power industry.
read more

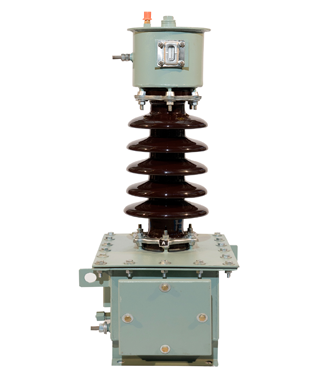

Voltage Transformers (VT), are used for voltage metering and protection in high voltage network systems. They transform the high voltage into low voltage adequate to be processed in measuring and protection instruments secondary equipment, such as relays and recorders). A Voltage Transformer (VT) isolates the measuring instruments from the high voltage of the monitored circuit. VTs are commonly used for metering and protection in the electrical power industry.
read more

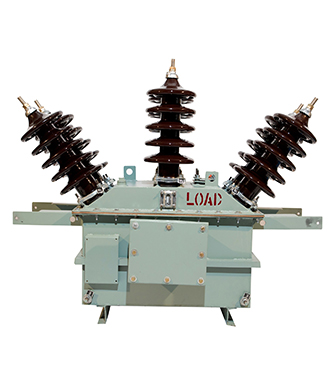

The combined instrument transformer (CTVT) offers the station designer the ability of being able to accommodate the current transformer and the voltage transformer in one free-standing unit. This allows optimum use of substation space while yielding cost savings by elimination of one set of mounting pads and support structures. In addition, installation time is greatly reduced.
